Author: Direct Channel

Brand: Direct Channel

Features:

• Suitable for air con units, cellar coolers and and heat pump systems.
• For mounting units to any brick / concrete or block walls.
• Fully Adjustable Height & Width - fits to any Unit (Max - 600mm Depth)
• HDG - Hot Dipped Galvanised (Corrosion Resistant)
• SWL (Safe Working Load) 200KG

model number: 600mm

Part Number: CLA600S-WB1

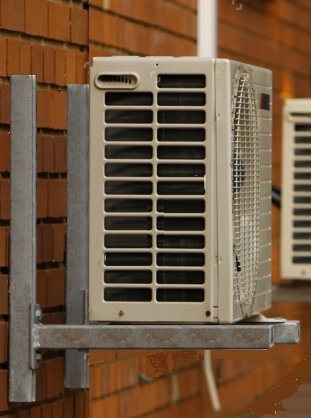

Details: 600mm Long Wall Bracket Kit - (Includes all nuts and bolts & fixings)

Suitable for air con units, cellar coolers and and heat pump systems.
For mounting units to any brick / concrete or block walls.
Fully Adjustable Height & Width - fits to any Unit (Max - 600mm Depth)
HDG - Hot Dipped Galvanised (Corrosion Resistant)
SWL (Safe Working Load) 200KG
Contents are as follows:

2 x 600mm Slotted Cantilever Arms - (HDG)
2 x Lengths of 41x41mm - 750mm Slotted Channel (HDG) - (To fix to Wall)
4 x M10 Channel Nuts / 4 x M10x30mm Bolts / 4 x Penny Washers - (To fix Cantilever arms to Channel)
4 x Heavy Duty Wall Anchor Bolts
Sold as a set
(Air Con Unit - Not Included)
